FTO Falconclaw Thermal Overlay 640

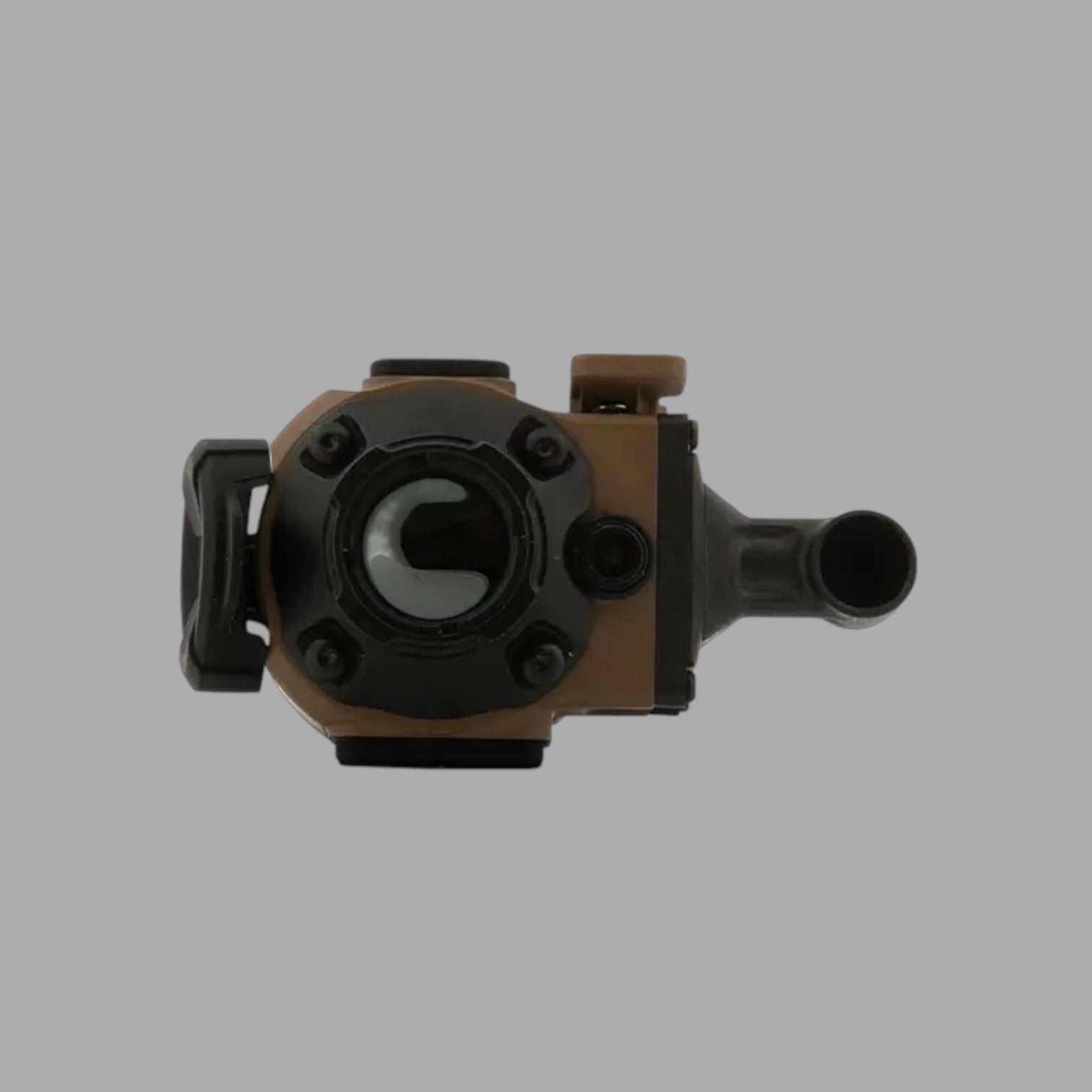

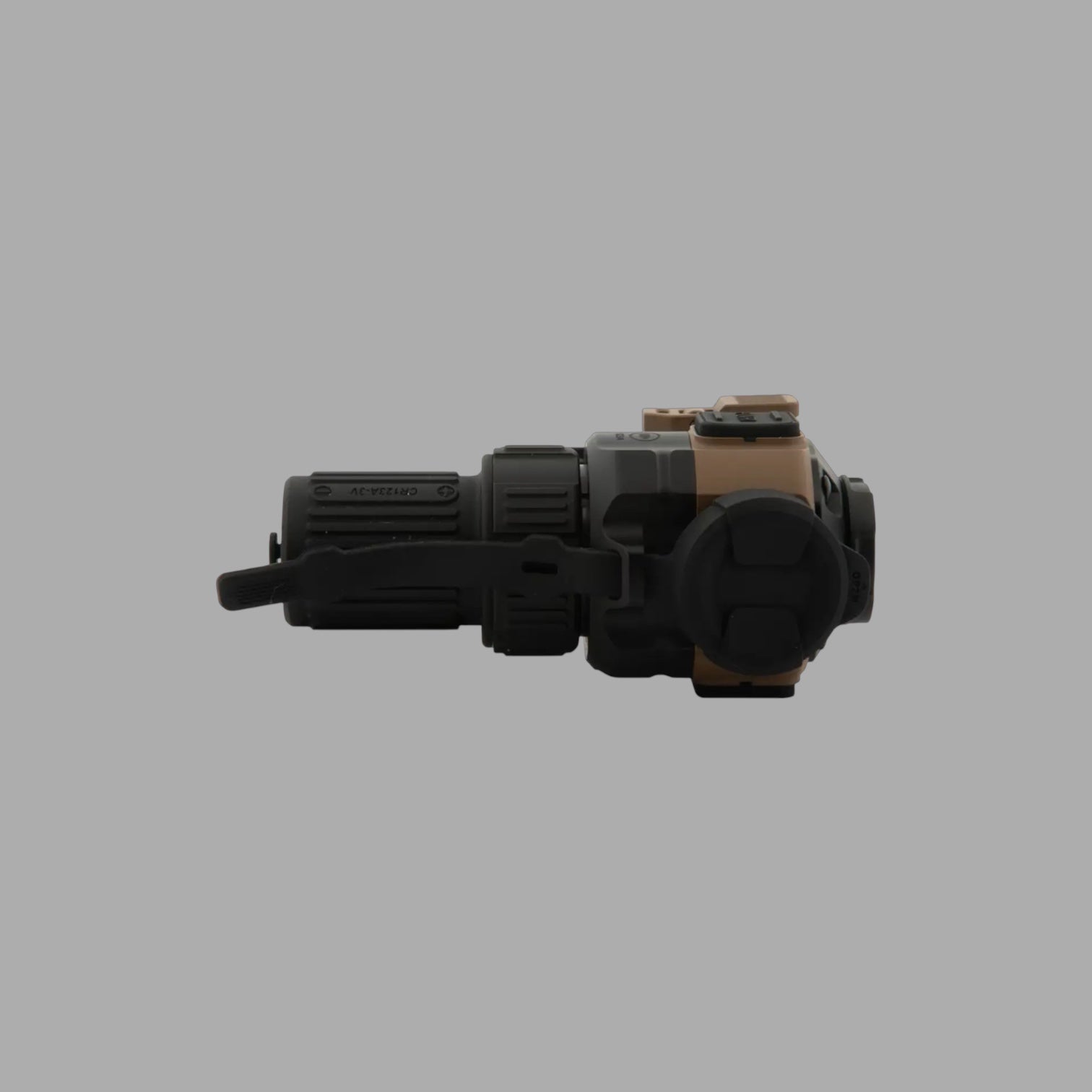

The Falconclaw Thermal Overlay 640 (FC-TO) is an ultra-light fusion module that layers a high-resolution thermal image on top of your night vision view, dramatically improving detection and situational awareness without changing your existing setup.
- Fusion overlay: combines thermal imagery with night vision for improved target detection and awareness.
- Finds what NV alone misses: helps you pick out people, animals and objects in darkness, foliage or cluttered backgrounds.
- Multiple display modes: select between white-hot, highlight and outline modes to match conditions and preference.

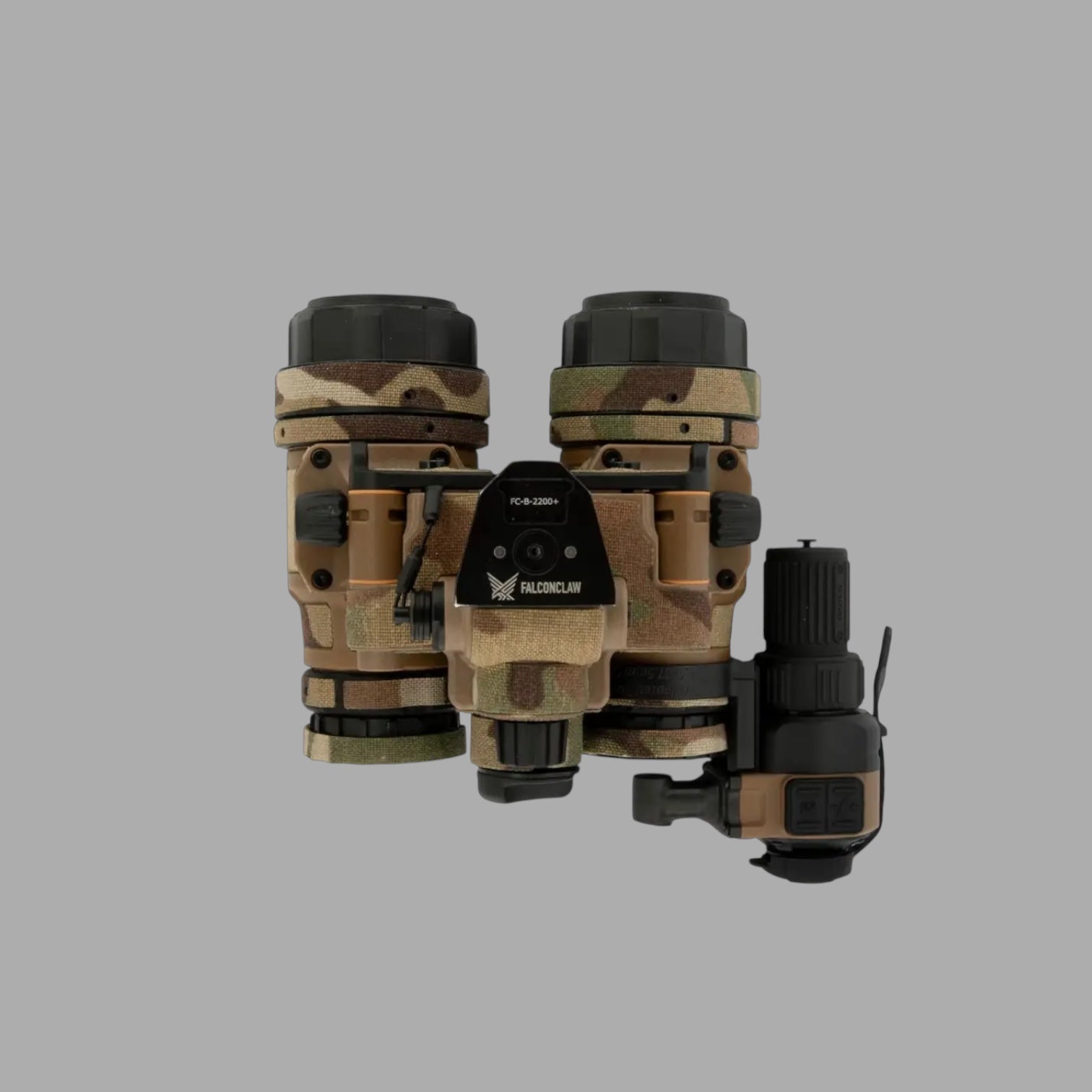

- Ultra-light housing: only 62 g (without battery) and mounts directly to Proton Lite, Proton Lite-O, PVS-14, DTNVS, PVS-31, GPNVG etc…
- Smart functionality: integrated compass, GPS connectivity, automatic brightness control, flip-up auto shutoff and remote control support.
Overview
| Product | Falconclaw Thermal Overlay (FC-TO) |
|---|---|
| Function | Thermal clip-on overlay for night vision devices |
| Weight | 62 g (without battery) |
| Compatibility | PVS-14, DTNVS, PVS-31, GPNVG, FC-B |
Performance
| Resolution | 640 × 512, 12 μm |
|---|---|
| Field of View | 35° |
| Recognition range (human) | ≈ 275 m |
| Viewing modes | White-hot, Highlight, Outline |
| Minimum fusion distance | 10 m |
Power and Runtime

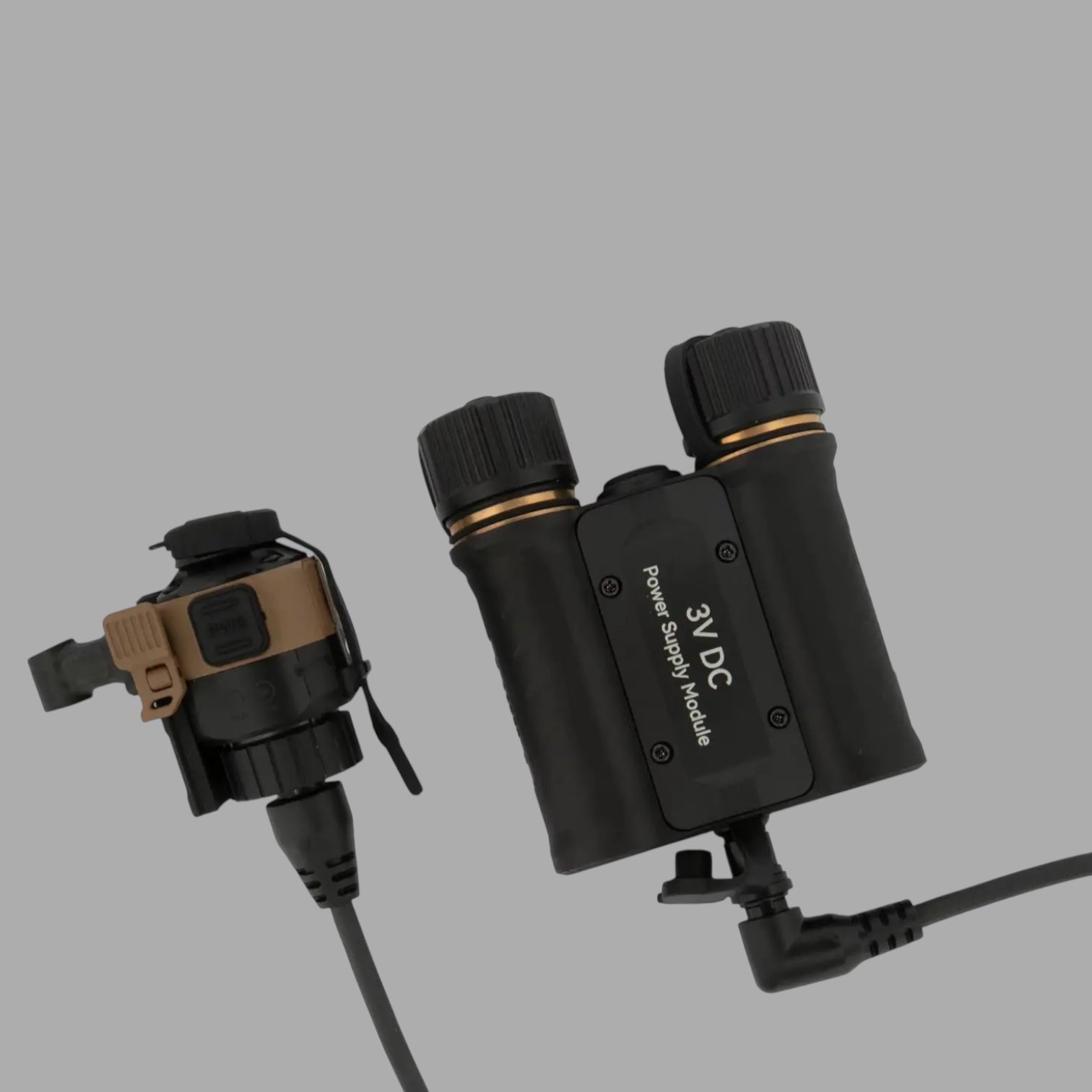

| Battery options | CR123A (3 V) or external pack with 2 × 18650 cells |
|---|---|
| Runtime | ≈ 3 h (internal) / ≈ 10 h (external battery pack) |
| External connectors | GPS, battery pack, image storage |
Durability and Features
| Dimensions | 86 × 65 × 40 mm |
|---|---|
| Flip-up auto shut-down | Yes |
| Automatic brightness | Yes |
| Compass | Digital magnetic compass |
| Remote control | Included |
| Operating temperature | −40 °C to +60 °C |
| Waterproof rating | 1.5 m for 30 minutes |
Heads-Up Display
| Image mode | Shows current thermal mode (Highlight / Outline) |
|---|---|
| Compass | Orientation display |
| Battery | Current power level |
| Time | Displayed when GPS is active |
| Quick adjustment | Brightness, frequency, threshold (100–10%) |
| Current location | Displayed when GPS is active |
Included accessories
| Hardcase | Protective case for storage and transport |
|---|---|
| Thermal imager | Falconclaw FC-TO unit |
| NVD mounting bracket | Interface for compatible night vision devices |
| Remote control | Wireless operation |
| Lens cover | Front lens protection |
| Screwdriver | For mounting and small adjustments |
| Battery pack and cable | External pack for extended runtime |
| Product manual | User guide |
| Pouch | Soft carry pouch |
